Agile resource center

Agile Release Planning: An Overlay to Scrum.

Few (actually, no) software product is built in a single development Sprint. Yet, the Scrum method’s largest increment is one sprint. Adding software release planning and management either requires a different method or some creativity in overlaying release planning atop the Scrum Methodology. CodeStringers has done just that.

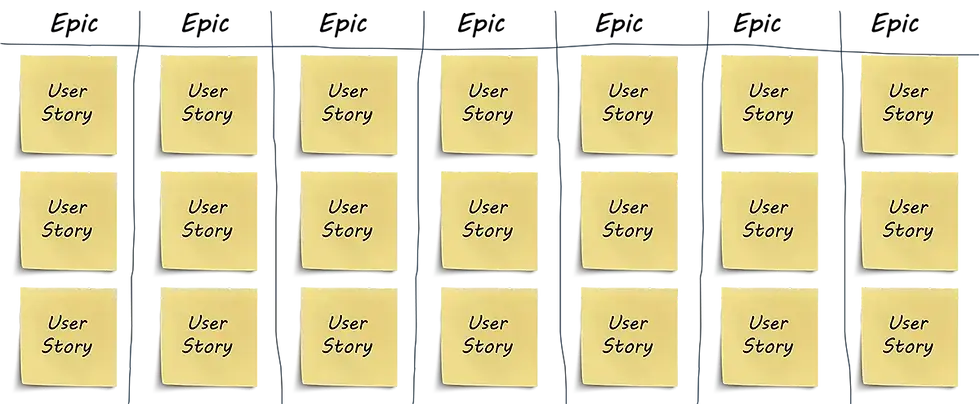

Story Mapping.

Story maps are invaluable tools to help product planners (Product Owners / Product Managers / Requirements Analysts) visualize all features (User Stories) in a release through the context of the User’s experience with the product.

The goals of Story Mapping are:

  1. Visualize the complete product experience versus a collection of individual features (User Stories).
  2. Ensure that no User Stories are missing.
  3. Prioritize by release. Some User Stories may be deferred to a subsequent release.

In Story Mapping, User Stories are logically grouped into Epics or User Journeys. For example, a product might have an Epic for “Registration & Login” that would include the following User Stories:

  • Create an account with email (enter email address, submit form).
  • Receive a verification email (the system sends an email to the user with a link to confirm ownership and accuracy of the email address).
  • Verify email address and complete account creation (click email link, add avatar, name, password, and any other desired information).
  • Login.
  • The user initiates a password reset (from the login screen, the user clicks the option to reset the password, enters their email address, and submits the form).
  • Receive password reset email (system sends email to the user with link to complete password reset).
  • Complete the password reset (click the email link, enter a new password, and submit the form).

User Stories need not be completed to create a Story Map. The summary information per above is sufficient for the time being, given the objectives above.

Product Backlog & Icebox.

We covered the definition of the Product Backlog in Sprint Basics. In the context of release planning, the Product Backlog is the repository into which User Stories prioritized for the release being planned to be prioritized.

So where then do User Stories deferred to a future release go? Where do new ideas customers request go?

The Icebox.

The Icebox is a concept NOT covered by the Scrum method, but is invaluable to Product Owners as a repository for futures. By creating an Icebox for each software product, the Product Owner can keep the Product Backlog “clean” and avoid the chance that an enterprising team elects to complete a User Story that the Product Owner deferred to a future release (yep, it happens).

The Icebox, like the Product Backlog, can be groomed, although it’s not required. But as the Icebox grows in size, it’s helpful to create priorities and even start Story Mapping the next release while the current release is being built.

Release Acceptance Criteria.

Release Definition of Done.

Software features and releases have functional requirements and non-functional requirements. Functional requirements are features with which users interact and gain value. Non-functional requirements are software qualities that determine architecture, technology stack and testing parameters of the product.

Examples of non-functional requirements might include:

  • For a web application, whether or not the application must be responsive, and to what screen resolutions and break points (at what browser width the layout “breaks” to each screen size).
  • For a mobile application, which platforms (iOS, Android, etc.) and screen resolutions the application must support; whether tablets and phones have the same layout; and (possibly) whether the application must support landscape versus portrait mode.
  • Scalability and performance requirements are typically defined based on “peak load,” the highest level of usage the application should see in terms of simultaneous user sessions.
  • The level of quality that must be achieved for the software to be released. For example, defects with a priority of urgent and high priority must be fixed, but the software can be released with medium or low-priority defects.

In many cases, non-functional requirements are the same for all features in a release. Thus, having to draft these requirements for every User Story is unnecessarily time consuming.

Instead, CodeStringers advocates adding a definition of done for each software release that captures all non-functional requirements that are common to all User Stories in the release.

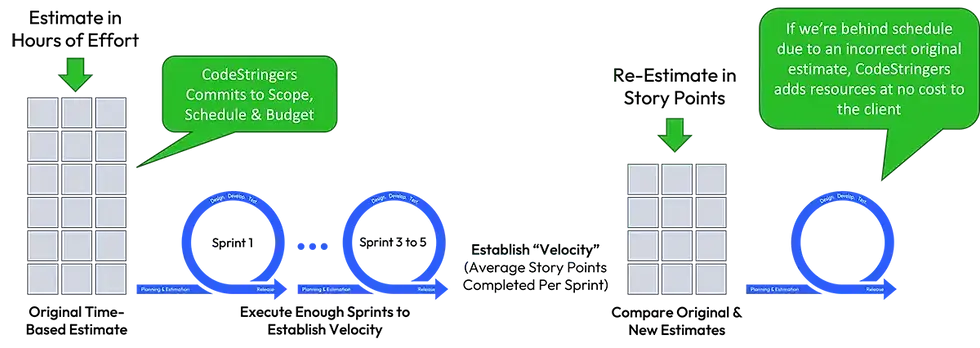

Release Estimation.

Creating Predictability.

On another page of this resource center, we told you not to estimate effort in time (the lumberjack analogy). But there is one exception. When estimating the first version of a new software product to be built by a newly established development team.

Newly established teams working on new products do not have a Velocity measurement. Thus, they are able to estimate individual User Stories in Story Points based on past experience. How do they translate those estimates into a release date?

A business cannot execute without release dates. Marketing can’t plan launches and demand generation programs. Sales can’t forecast deals and revenue. Operations doesn’t know when they need additional resources or training to support the product.

So, how do we create predictability?

Time Estimating the Product Backlog.

The process is pretty simple, but will result in both predictability and transparency within your company about when the release will be complete and where the development organization is in the process.

After Story Mapping is complete and the release User Stories are in the Product Backlog, the team estimates everything in the Product Backlog using time-based estimates. This process may take one to three days, which may seem like a waste of time, but the answer it provides is worth the investment.

When the CodeStringers team completes these estimates, the mandate given to them is to create “no greater than” estimates. We live by the “under promise and over deliver” saying.

That effort estimation allows us to provide the company with a planned release date.

Re-Estimating in Story Points.

Once we have a time-based estimate, we complete several sprints. Prior to each Sprint, the team estimates the Stories in the Sprint Backlog in Story Points. The number of sprints depends upon the length of the release. We strive at CodeStringers to have the number of sprints we complete at this point equal about 10 percent of the expected sprints based on the time-based estimate.

This allows us to establish a Velocity. Although that Velocity has likely not reached its peak yet as the team is still ramping up, we can guesstimate based on experience and the current Velocity how much the Velocity will increase with more team experience.

Then, the team re-estimates all remaining Stories in the Product Backlog in Story Points. At this point, we have the benefit of experience on the current software product to support comparative Story estimates relative to Stories already completed on this Product.

We divide the total of all Story Points remaining in the Product Backlog by the Velocity, which gives us a second view of the number of remaining sprints.

The Benefits.

This methodology has a few benefits:

#1 – Predictability and Empowerment.

We now have two methods of predicting a release date, and we can compare them to each other. This predictability gives the organization the opportunity to take action if the first (time-based) estimate was low, meaning we will miss the release date absent a change in scope and/or resources. This, in turn, allows the organization to have time to either change the release date (early enough that other departments have sufficient time to adjust their plans), reduce release scope (defer features to a later release), or increase resources to increase the Velocity.

We learn how accurate our time-based estimates were and, if/when we’re wrong, the reasons. This learning helps improve future estimates. When estimates are wrong, it’s typically (in CodeStringers’ experience) for one of a couple of reasons:

  1. We missed entire User Stories in our Story Mapping. It happens. There’s a science and art to envisioning a software release and ensuring that all functionality is documented in the release plan. And even the most experienced product planners miss things.
  2. Downstream logic where one User Story impacts others or creates others aren’t considered. For instance, if you have an application where user permissions determine functionality available to users, every feature has to be implemented with permissions in mind. Sometimes things of this nature aren’t considered by the team when doing initial time-based estimates.

In these situations, it’s helpful to review the “mistakes” and learn from them so that time estimates on future releases increase in accuracy.

Go through this process on a few hundred software products and the team gets pretty accurate.

#2 — Learning.

Questions

Questions people ask.

What is a release in agile?

A release is a version of the product delivered to customers, usually built across many sprints. Each sprint produces a potentially shippable increment, but most products need several increments before there is enough to ship: an account system with no features behind it is done but not releasable. Release planning groups the stories that make up a shippable version, orders them, estimates them and tracks progress toward a date the business can plan around.

What is the difference between a release plan and a product roadmap?

A roadmap states themes and intended outcomes over quarters or years, with little commitment to specific features or dates. A release plan is the next step down: the stories in the next version, grouped into epics, estimated and ordered, with a target date derived from velocity. The roadmap says where the product is going; the release plan says what ships next and when. The icebox holds what the roadmap promises but the release defers.

What is a release burndown chart?

A release burndown plots the story points remaining in the release against sprints completed. Each sprint, the completed points come off the total and the line moves down; when scope is added, the line moves up. Projecting the slope forward gives the expected finishing sprint, and the chart makes scope creep visible as a line that refuses to fall. It is the simplest honest answer to the question of whether the release is on track.

How do you handle scope changes in the middle of a release?

Add the new story to the backlog, estimate it and decide what it displaces. With a fixed date, something of equal size leaves the release and goes to the icebox; with fixed scope, the date moves by the points added divided by velocity. What does not work is adding without removing, which is how releases slip quietly. Making the trade explicit each time is the product owner's job and the reason the backlog is ordered by priority.

How do you set a release date from velocity?

Divide the points remaining in the release backlog by the team's average velocity to get the sprints remaining, then add them to the calendar at the sprint length. Recalculate after every sprint as velocity settles and the backlog changes. Early in a project velocity is still rising, so the first projections are conservative; by the fifth or sixth sprint the date is usually stable enough to give to marketing, sales and operations.

How much of the backlog should be fully written before a release starts?

Enough for story mapping and estimation: every story identified with a summary, grouped into epics and prioritised, but detailed acceptance criteria only for the first few sprints. Writing full acceptance criteria for stories that may be deferred or changed wastes time. Each sprint's stories are refined just before the sprint that builds them, with the release definition of done carrying the non-functional requirements that apply to all of them.
